FLEET

Vessel Name

ASL CHEEL

Flag

India

POR

Mumbai

Official No

4416

Call Sign

A W T K

MMSI

419 001 232

Built

Batam, Indonesia

Keel laid

29.08.2014

Year Built

2016

IMO No.

9746463

Class (Dual)

IRS /ABS

Length Overall

65.00 m

Length BP

60.03 m

Breadth Moulded

16.00 m

Depth Moulded

6.20 m

Draft (SLL)

5.00 m

Builder

ASL Shipyard

GT/NT

2313/693

Class

ABS, XA1,Towing Vessel. AH,FFV Class 1, OSV, E, XAMS,XDPS- 2,OSR- C1, SPS.

IR Class No

49934

ABS CLASS

16257811

Company ID

5972981

Lightship

2040 MT

Deadweight

1774 MT@5.00 m

Deck Cargo

600 MT

Deck Strength

7.0 t/m2

Clear Deck Area

435

Ballast/Drill Water

564 m3

Fuel Oil

587 m3

Potable Water

422 m3

Mud/Brine/RO

458 m3(2.5 SG)

Cement

150.0 m3

Base Oil

192 m3

Ballast/Drill Water

100m3/hr@70 m

Fuel Oil Cargo

106 m3/hr@70 m

Fresh Water Cargo

100m3/hr@70 m

Mud/Brine/RO

75m3/hr@18 bar,

Base Oil

50 m3/hr@70 m

Main Engine

Yanmar 6866 BHP Total

Shaft Gen

2 x 1140 kW each

Main Gen

3 x 492 kW each

Propeller

2 x Schottel, CPP in Nozzles, 3000 mm diameter

Bow Thruster

2 x 640kW, 10 T Thrust

Stern Thruster

1 x 515 kW, 8 T Thrust

Main Engine

Yanmar 6866 BHP Total

Maker

Kongsberg K-Pos 21

Gyro

3 x Anschutz STD 22

Wind Sensor

3 x Gill Ultrasonic

MRU

3 x Seatex MRU 2

DGPS

Seatex, DPS 110 and 112

Laser Sensor

Cyscan MK 4

AHT Winch

Double-Drum Waterfall, Pull - 150 T at 1st Layer, Brake - 250 MT, Drum - 1200 m of 60 mm dia. wire

Tow Pin

1 pair Karmoy, rated for up to 160 MT Bollard Pull

Chain/Wire Stopper

Karm Fork, 300 T SWL

Stern Roller

4.4 x 1.7 m, 250 T SWL

Tugger

2 x 10 T Pull

Capstan

2 x 10 T Pull

Storage Reel

1 x 200 m of 60 mm dia. Wire

Pump

2 x 1736m3/hr @125m Head

Water Monitor

1 x 1200 m3/hr, 120 /50 m

Water/Foam Monitor

1 x 1200/300 m3/hr

Max Speed

13.0 knots / 21.1 MT/Day

Eco Speed

8 knots / 11.3 MT/Day

Standby

4.4 MT/Day, Main engines at 10% MCR, not running diesel generator

X-Band ARPA Radar

Furuno FAR-2117-D

X-Band Radar

Furuno FR-8062

DGPS

2 x Furuno GP-150

ECDIS

Furuno FMD-3200

Autopilot

Anschutz Nauto
Pilot NP60

Magnetic Compass

Lilley & Gillie MK2000

Echo Sounder

Furuno FE-700

Speed Log

Furuno DS-80

BNWAS

Furuno BR-500

GMDSS

Furuno RC-1800T Radio Console for Sea Areas A1-A2-A3

Portable VHF

3 x McMurdo R5

Weather Fax

Furuno FAX-408

NAVTEX

Furuno NX-700

AIS

Furuno FA-150

EPIRB

McMurdo E5

SART

2 x McMurdo S4

Inmar Sat-C

Furuno 18

IMN No

441927566

VHF - DSC

FUruno- FM 8900s

Vessel Name

HALANI -6

Flag

India

POR

Mumbai

Official No.

4324

Call Sign

AWPI

Built

Norway

Year Built

1998

MMSI NO.

419001125

IMO No

9165906

Class

DNV +1A1Dk(+)DYNAPOS(AUTHR)EOHL(2.5)SF / IRS

Length Overall

61.675 m

Length BP

61.8 m

Breadth Moulded

16.00 m

Depth Moulded

7.00 m

Draft (SLL)

5.838 m

Builder

Brevik Construction AS, Norway

GT/NT

1971 / 843

Class

IRS / DNV

Main Engine

TWIN BERGEN KRMB9 ,DIESEL ENGINE@825 RPM, PRODUCING 2005X2=4010Kw(BHP 5460 Diesel Generator 2x Cummins NT855G5, 250Kw. 310kva( each ) total 500Kw,450v,60 Hz

Shaft Gen

2 x 1280Kw(1600kva each) 2560Kw

Emergency Gen

Cummins 4BT39G1 48 Kw, 450 V, 60 Hz

Propeller

2 x CPP Ulstein 600 AGSC,

Bow Thruster

2 x Ulstein Tunnel700 BHP

Bow Ulstein Azimuth

700 BHP

Stern Ulstein Tunnel

800 BHP

DWT

3090 MT

Clear Main Deck Area

13.5mx46=620sq.m load cap

F.O

850 Cu. M.( 722 Tons)

F,W,

830 Cu. M

Vessel Name

MALAVIYA-16

Flag

India

POR

Mumbai

Official No.

2960

Call Sign

ATSE

Built

Norway

Year Built

2002

IMO No.

9249415

Class

IRS ( DP-1 / SUL Supply Vessel STS IY, SYJ, TCM

Length Overall

72.00 m

Length BP

Breadth Moulded

16.00 m

Depth Moulded

7.00 m

Draft (SLL)

5.838 m

Builder

Brattvaag Skipsverft, Norway

GT/NT

2137 / 975

Class

IRS

Clear Deck Space

51.0 m x 13.5m Total 690 m2

Deck Strength

5 Tons /m2

Deck Cargo

1600 Tons

Main Engine

BERGEN-KRMB 9 ,DIESEL ENGINE@2X2730 BHP ,Total 5460 BHP.

Shaft Generator

2 x 1280 Kw

Diesel Generator

2 X 250Kw

Emergency Gen

1x 48 Kw

Propeller

2 x ULSTEIN CONTROL PITCH PROPELERS

Rudder

2 x ULSTEIN HIGH LIFT RUDDER

Bow Thruster

2 x ULSTEIN 150 TV, EACH 800 BHP

STERN Thruster

2 x ULSTEIN 150 TV, 800 BHP

Max Speed At 100%

MCR,18.8 tons/day @13.0 knots.

At 80%

MCR,16. tons/day @12.0 knots.

Eco Speed At 80%

MCR,12.8 tons/day @10.0 knots.

Type of Fuel

HF HSD ( Marine Gas Oil)

Vessel Name

MALAVIYA-18

Flag

India

POR

Mumbai

Official No.

2959

Call Sign

ATSA

Built

Norway

Year Built

2002

IMO No.

9249427

Class

IRS (SUL Supply Vessel STS IY, SYJ, GS KK)

Length Overall

72.00 m

Length BP

Breadth Moulded

16.00 m

Depth Moulded

7.00 m

Draft (SLL)

5.838 m

Builder

Brattvaag Skipsverft, Norway

GT/NT

2137 / 975

Class

IRS

Clear Deck Space

51.0 m x 13.5m Total 690 m2

Deck Strength

5 Tons /m2

Deck Cargo

1600 Tons

Main Engine

BERGEN-KRMB 9 ,DIESEL ENGINE@2X2730 BHP ,Total 5460 BHP.

Shaft Generator

2 x 1280 Kw

Diesel Generator

2 X 250Kw

Emergency Gen

1x 48 Kw

Propeller

2 x ULSTEIN CONTROL PITCH PROPELERS

Rudder

2 x ULSTEIN HIGH LIFT RUDDER

Bow Thruster

2 x ULSTEIN 150 TV, EACH 800 BHP

Max Speed At 100%

MCR,18.8 tons/day @13.0 knots.

At 80%

MCR,16. tons/day @12.0 knots.

Eco Speed At 80%

MCR,12.8 tons/day @10.0 knots.

Type of Fuel

HF HSD ( Marine Gas Oil)

Vessel Name

WORKBOAT

Flag

India

POR

Mumbai

Official No.

4569

Call Sign

VTAF

MMSI

419001410

Built

Singapore

Keel

laid

Year Built

2002

IMO No.

9277498

Class

IRS /RINA

Length Overall

66.00 m

Length BP

60.03 m

Breadth Moulded

20.00 m

Depth Moulded

6.50 m

Draft (SLL)

5.0 m

Builder

Ddw-paxocean shipyard pte ltd.

GT/NT

2838 / 851

Class

IRS /RINA

IRS Class No.

62467

RINA Class No.

98457

Company ID

6077746

Clear Deck Space

2610 MT@ Approx

Clear Main Deck Area

360m2 @ Approx

Clear Lower Deck Area

40m2 @ Approx

Main Engine

2X1775,DIESEL ENGINE@900 RPM C/W REDUCTION GEAR BOX

Shaft Generator

2 x

Main Gen

3 x 370 Kw

Emergency Gen

1x 96 Kw

Propeller

2 x FPP,2M, Dia,@4Bladed with kort Nozzles,

Bow Thruster

2 x 7Ton CPP (477kw Engine)

Steering Gear

2 x Independent Electro- Hydro Sys-

Max Speed

12.3 knots aprrox @ 100% MCR

Eco Speed

11.5 knots aprrox @ 75% MCR

Standby

4.4 MT/Day, Main engines at 10% MCR, not running diesel generator

Vessel Name

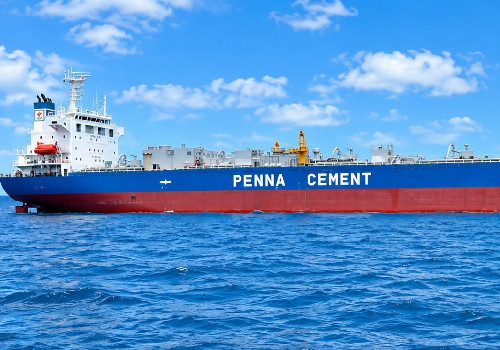

PENNA SURAKSHA

Ex-Name

Tan Binh-139

Ex-Name

Amine Bulker

Flag

India

POR

Mumbai

Official No.

4476

Call Sign

AWWJ

MMSI

419 001310

IMO No.

9310599

Class/ IR. #

IRS /60565

Length Overall

176.63 m

Length BP

169.40 m

Breadth Moulded

26.00 m

Depth Moulded

13.653 m

13.653 m

17688/7271

Summer Moulded Draft

9.61m.

Summer Displacement

35,840

Dead Weight

26500 T.

Service Speed

14.10 Knots

Builder

Shin Kurushima Dockyard Co. Ltd

Place of Built

Ehime, Japan

Year of Built

16.01.2007

Date of Keel Laid

07.12.2004

Date of Launched

08.11.2006

Date of Delivery

16.01.2007

P& I Insurance

The West of England Ship Owners Mutual Insurance Association (Luxemburg) R.C.S. Luxemburg B 8963, 31 Grand Rue L- 1661, Luxemburg, G.D. Luxemburg, Tel + 352 4700671, + 352 225253

Main Engine

Mitsubishi 5UEC 52LA x 1 Set 5900 Kw. ( 8022ps x 133 rpm.)

Main Gen

YANMAR 6N 18L-UV, 450Kw x 3 Sets, 720 rpm. AC 450, V.60 Hz

Propeller

4 Blades, Solid Keyless w-Screw Type

Class Notation

SUL, In water Survey ""for Carriage of Cement In Bulk" - IY

Vessel Name

MPV PSV-1

Type of Vessel

Offshore Supply Vessel

Flag

India

POR

Mumbai

Official No.

3160

Call Sign

AUJR

MMSI

419 566000

Built

Norway

Builder

Vard Brattvaag, Norway

Owner

MPallonji & Co. Pvt. Ltd.

Year Built

2006

IMO No.

9333515

Class (Dual)

IRS /DNV

Length Overall

66. 38 m

Breadth

16.04 m

Depth

7.00 m

GT/NT

2152/1046

Deadweight

3321

Main Engine Make

Rolls Royce Bergen, Norway Model- KRMD -9
